CW-DPSS Systems Red - IR Spectrum

Our Solid State Laser Systems emitting in the lower IR-Band at the 1 - 2 µm region are providing CW output powers between 3 - 400 mWatts.
As a novelty in the red region, we can deliver frequency doubled Nd-YVO4 Lasers emitting at 671 nm.
Depending on application we offer adapted product lines within this main category.

In the range of DPSS lasers Red - IR spectrum we differentiate four product lines

  • LPIR-Series
  • MPIR-Series
  • MPIR-M-Series
  • MPR-Series

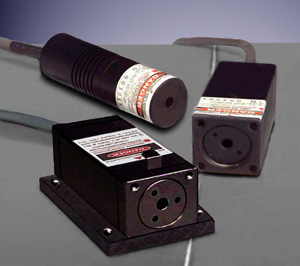

LPIR- Series

Lasing at the standard Neodymium line of 1064 nm, the LPIR-Series is available in three categories of housings providing optimal adaptation capabilities for the application setup.

LPIR-01
A rectangular housing of 21 x 21 mm with a length of 52 mm makes these units very easily adaptable in optical setups. They provide output powers from 5 - 20 mWatts.

LPIR-02
These systems feature a baseplate for easy adaptation to the optical setup. An integrated manual shutter improves operator safety for these systems delivering from 5 to 50 mWatts of output power. Active cooling capability improves the power stability to < 5%.

LPIR-06
A tubular housing of 12 mm in diameter and a length of 40 mm make these units easily adaptable in optical setups. They come with output powers from 3 - 20 mW.
The systems LPIR-01 and LPIR-06 are passively cooled and can be provided in DC versions 5 or 12 VDC or with powersupply for a 110/ 220 VAC input.

Application examples:
  • Metrology
  • Medical applications
  • Analytics
  • Laser radar
  • Scientific research
  • Specifications >>>

.Top
MPIR- Series

These systems are medium output power lasers providing 100, 200 and 400mW with an emission wavelength of 1064 nm. An improved power stability of < 5% within the operationg temperature of 10 - 40° C makes these systems suitable for more demanding applications.

.Top

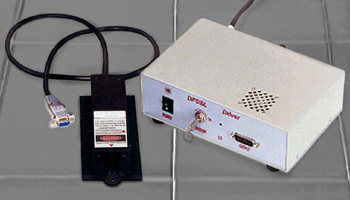

MPIR-M- Series

With an emission wavelength of 1342 nm the MPIR-M systems provide output powers at 20, 50 and 100mW . As the standart MPIR-series these units exhibit an improved power stability of < 5% within the operationg temperature of 10 - 40° C.
Application examples:
  • Metrology
  • Communication
  • Analytics
  • Laser radar
  • Scientific research

.Top

MPR- Series

As a novelty for solid state lasers emitting in the red spectrum, the MPR-systems provide output powers of 5, 10, 20 and 50 mW at 671 nm. These systems are in competition to the normally utilized diode laser modules in this wavelength region. This technology exhibits not only superior output power compared to diode lasers but the beam quality is also outstanding. These systems are a real alternative for high power red applications.

.Top
