DPSS Pulsed Laser Systems

Some of our systems are also available in a Q-switched version in the IR spectrum
at 1064nm as well as frequency doubled at the 532nm green wavelength. These systems are used in applications asking for high peak power and repetition rate together with a narrow pulse width.

Our pulsed DPSS lasers are divided in three product lines
  • LPIR-P-Series
  • MPIR-P-Series
  • GLM-P-Series

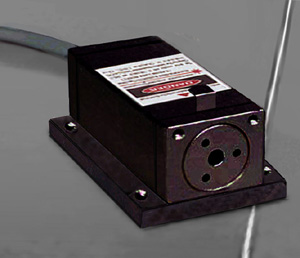

LPIR-P-02

These systems lasing at 1064nm are comparable to the according CW version in physical features and dimensions, equiped with a baseplate for easy adaptation to the optical setup.
An average output power of 50 mWatts with a pulse repetition rate up to 100 KHz at a pulse width of < 30 ns provide peak powers of more than 15 Watts.

Application examples:

.Top
MPIR-P

The MPIR-P series provides the shortest pulse width of < 25 ns of our Q-switched systems lasing at 1064nm in the IP spectrum. The Systems can be delivered in average power ratings of 5, 10, 20 and 50 mWatts, with max. peak powers upto 200 Watts and a repetition rate of 10 KHz.

.Top
GLM-P

The GLM-P series is providing average powers of 15 and 30mWatts in the green spectrum at 532 nm.
Due to the frequency doubling the pulsewidths attainable are broader compared to systems lasing at the base IR-wavelength.
Model depending the duration of pulses are ranging between 40 ns and 60 ns.
The pulse repetition is rated at
10 KHz for the 15 mW average power system and 50 KHz for the 30 mW version.

Application examples:

  • Spectroscopy
  • Forensic
  • Scientific research
  • OEM applications
