| Our PLASMA© Argon and Krypton ion lasers emit in the visible spectral range from 457,9 nm to 676,4 nm and in the UV area from 334,4 nm to 351,1 nm. As a novelty, one model provides violet lines from 406,7 nm to 413,1 nm. For improvement of the beam quality and due to the high output power of some of the systems, a water cooling system is standardly employed. Depending on the model, a 3 phase 380 VAC mains supply is mandatory. |
|||||
Constructional Features (extract):
|
|||||
|
We are offering three different product lines
|
|||||
| D-Series The Argon/Krypton/Mixed gas high power lasers of the D-series provide Multi-Mode, Single-Mode and Single-Frequency operation at 457,9 - 676,4 nm in the visible range of the spectrum. Application examples:
In comparison to the LGN-series these systems provide a better stability, due to the utilisation of a mechanically decoupled innovative SuperInvar ® Resonator. . |
|||||
|
|||||
| The model LGN-513 is intended for the UV-spectral range at 334,4 - 351,1 nm. . |
|||||
| LGN-106 As Argon/ Krypron or Mixed Gas ion-laser this system is a costeffective solution for laser light in the blue to red spectrum, but also as white-light-laser. At a low price and comfortable operation as well as maintenance this system provides for a wide range of application. LGN-106M5 High reliablity and a convenient size to performance ratio at an output power up to 5 Watts in Multi-Mode operation distinguish the LGN-106M5. The metal-ceramic tube with integrated laser mirrors provides for a very low maintenance operation. As a specialty in comparison to other lasers of this class, this laser my be operated in the vertical position. LGN-512, LGN-513 UV High stability with output power in the visible spectrum of 12 Watts in total and in the UV-range upto 1 Watt are exhibited by these Argon-Lasers. Wavelength tunable models with thermally compensated Wavelength-Selector as well as Single-Mode operation are available. The Resonator is mechanically decoupled from the laser head housing, the Berillium-ceramic lasertube is terminated with cristalline Quarz Brewster-windows. An integrated safety-system protects from operational faults and external influences. Application examples:
LGN-514
|
|||||

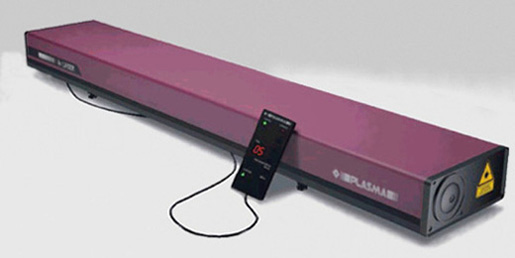

| M-Series Within the M-Series we differenciate between the model series M 931 to M 935 as Argon/ Krypton lasers as well as the unique M-936 as He-Laser with output powers from 0,1 - 0,2 Watts in the UV and a new model series M-951, M-951K and M-951AK with output powers upto 10 Watts in total. M-931 - 936 The ionen laser Models M-931 - 936 provide a broad spectrum of wavelengths from 332,4 - 676,4 nm, including new violet laser-lines at 406,7 - 413,1 nm and UV- lines at 332,4 - 337,0 nm. All models are based on a proprietary and efficient technical solution: Metal-ceramic lasertube with sectionalised plasma discharge channel of a high-meltingpoint alloy and crystalline Quarz Brester-windows as selfcontained unit in conjunction with the field magnet. Thus an easy replacement and maintenance is enshured. A gas reservoir delivers an optimal gas pressure throughout the total lifetime of the laser tube. A special safety system prevents operator faults and an uncooled operation. The superior reliability in conjunction with the excellent longterm stability satisfy even highest demands. Application examples:
|
|||||
|
|||||
The Berillium-ceramic plasma channel and the SuperInvar® resonator as well as the sofisticated and proven production technique enshure high parameter stability, robustness and system dependability. Application examples:
|
|||||
|
|
