Our forced air cooled argon lasers are easy to operate and reliable in performance. They are compatible with according products of laser manufacturer Uniphase®, Spectra-Physics® and NEC®. Our lasers are designed for easy servicing and permit fast and efficient laser tube replacement. A variety of wavelength and output power options are available. Several power supply options and accessories like remote control are completing this product line
For our water cooled low power ion lasers please refer to this section >>>
|
All our argon laser head incorporate internal mirror tube technology to minimize optics cleaning and for permanent beam alignment. This patented laser tube design improves thermal stability and tube longevity. Our laser heads are approved for compliance with CE and UL and are prepared for fiber optic delivery options.
We provide three different models with air cooling
Constructional Features (extract):
- Berillium ceramic plasma tube, mechanically and thermally isolated from the housing
- Hard coated internal laser mirrors
- System protection agains operating faults and overloads
- Compatible to Spectra-Physics®, Uniphase® and other manufacturers
|
|
|
|
LPA-210
Output Options:
5mW @ 458nm TEM00
20mW @ 488nm TEM00
25mW @ 457-496nm TEM00
40mW @ 457-515nm TEM00
Compatibility
Spectra-Physics P 163
Uniphase P 2201 & 2211
|
|

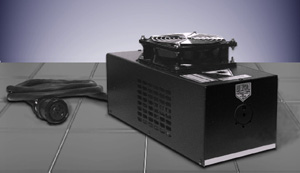

The model LPA-210 is concepted to provide single line output powers of upto 40 mWatts in the blue-green region. Wavelength options will have to be defined at ordering. For this laser we recommend our compact power supply PS-9700
|
|
|
|
Application examples:
- Confocal microscopy
- Inspection of semiconductors and microelectronic devices
- Spectroscopy
- Graphic arts
- Flow cytometry
- DNA sequencing
- Medical applications
|
|
|
LPA-600
Output Options :
30mW @ 488nm TEM00
40mW @ 488nm TEM00 (random)
Compatibility
NEC 3106
Output option will have to be defined on ordering.
|
|
|
|

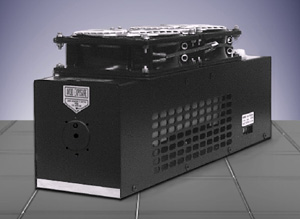

The LPA-600 argon laser offers mid-range power on the bluegreen line at 488 nm in a compact air-cooled package. It incorporates the proven technology of hard-sealed optics for permanent beam alignment and minimum maintenance. Our standart power supply PS-9600 is recommended for this laser head
|
Application examples:
- Dental & Medical Detection Equipment
- Laser Light Shows & Displays
- Optical Disk Mastering
- Dental Composite Curing
- Cell Sorting / Particle Counting
- Spectroscopy
- Scientific Research
- Holographic arts
|
|
|
|
 .
|
|
|
|
LPA-800
Output Options:
20mW @ 458nm TEM00
100mW @ 488nm TEM00
325mW @ 457-496nm MM
500mW @ 457-515nm MM
Compatibility
ILT 5500/6500 Lasers
Output option will have to
be defined upon ordering.
|
|

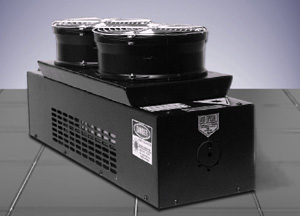

The LPA- 800 is a high-power, air-cooled ion laser that produces up to 500mW all lines, multimode. The heart of this laser is an extended bore laser tube. Its hard-seal, internal mirror design substantially eliminates alignment and contamination problems. The laser tube incorporates patented tube design features for exceptional stability and long tube life. The PS-8100 is the appropriate choice power supply for this laser head.
|
|
|
|
Application examples:
- Dental and medical applications
- Laser Light Shows & Displays
- Holographic arts
- Material Curing
- Scientific Research
- Stereolithography
- Laser microscopy
- Ti-Sapphire Pumping
- LSIC und VLSIC production
- Bio-technical applications
|
|
|
|
REMOTE-CONTROLS

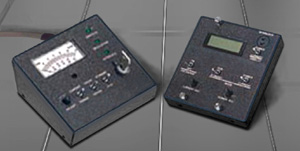

For applications where an external control of the laser current or light output is not available, we offer a remote contol unit for our argon laser power supplies with a limited function control. The remotes have a display to indicate the approximate output in current or light. The remote unit for the PS-9700 and PS-8100 can be attached to the front of the power supply or be remotely cabled.
|
Features:
- Meter
reading of the output
current and light power
- Interlock control
- Output power
adjustable control
standby control
|
|
|
|
|
|
|
