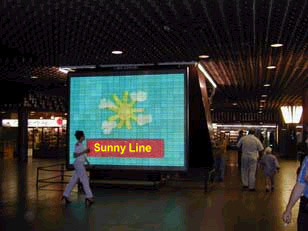

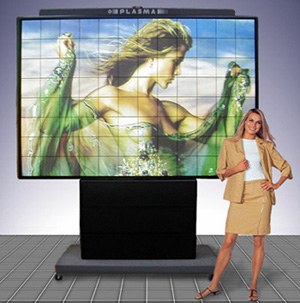

Large-Area Color Plasma Modular Screens As compared with LED-based screens and Front-or Rear Projection-Beamer-Systems as well as Video-Cube-Walls, Plasma Screens are significantly lower in price, show an excellent image quality, high brightness and in particular superior uniformity and absence of grain effects in the image. Plasma screens feature the advantages of significantly less thickness in comparison to video-cube-walls or projection systems, considerably less variation in brightness and color over the screen area and lower maintenance costs.

Standardized elements enshure scalability to almost any screen size required. Different pixel resolutions allow for a wide variety of applications. Solutions for home-video, office displays for presentations as well as cinema applications may be taylored to customer conception. They combine high contrast- and color ratio with wide angle view and excellent luminescence. Due to the construction of the flat panels, requirements for space are minimised. Plasma screens may be attached to walls or hung from ceilings or stand freely in public access areas.

Constructional Features: No hazardous emission Easy installation in any user convenient location Installation stationarily or movable on platform No requirement of zones for servicing Small space requirements No special equipment Cost effective

Plasma screens are designed on the basis of DC plasma panels. The panel consists of two glass plates seperated by a ceramic mesh, forming a rectangular matrix of cells. The ceramic seperator bears horizontal and vertical electrodes, a hard seal along the perimeter of the panel enshures environmental protection. The space between the glass plates is filled with a mixture of noble gases, exciting red, green or blue phosphor pixels when a control signal is applied to two perpendicular electrodes. The structure of panels permits stacking with minimal discontinuity in the image.

Three or more cells of the panel form a picture element (pixel). The size of a panel is 192 x 192 mm. Panels can be manufactured with different pixel sizes and resolution: · . 64 x 64 pixels of .3 mm in size · . 32 x 32 pixels of .6 mm in size · . 16 x 16 pixels of 12 mm in size

Our large-area screens based on plasma panels are utilised to display computer and TV- images, text and graphics. They are compatible with the majority of multimedia graphic and video formats and have proven their reliability in industrial and military control centres. The functional capabilitities of our plasma large screens enable their use with video cassete recorders, videocameras, TV-receivers, and to display information from PC in all modes of SVGA adapters.

Applications: Sports arenas Banks and stock exchanges Exhibitions and fairs Conferences Auctions Airports and subways Train and bus stations Hotels and offices Management areas Advantages: Higher contrast and luminescence than projection systems Much less space required than for projection systems and video cube walls Reduced maintenance and operating costs compared to projection systems Less power requirement than LED system Much greater color palette displayable than LED systems Standart TV- and computer format compatibility

Specifications >>> .

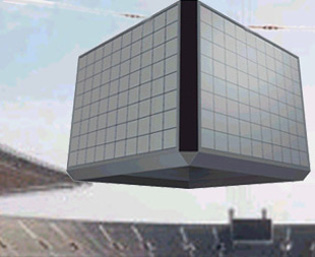

Four-positional display screens

Applications: Stadiums Banks Stock exchanges Exhibitions Auctions Airports Train and bus stations Offices Management areas

Typical layout as over-the-field installation in sports arena Specifications >>> .

Multi-screen module A flexible format and eight basic colors enable the display of advertisement and information from personal computer. The device offers ideal solutions for the display of travel information in railway stations, airports and sports arenas. The extended operating temperature range provides for outdoor applications.

Application examples: Stores and shops Banks and exchanges Stock exchanges Exhibitions Auctions Airports Train and bus stations Offices Hotels Educational institutions

Specifications >>> .

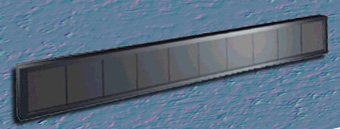

Running-line board The device is intended to display mainly text information in three modes: "running line", "vertical roll" and "still picture" . It is ideally suited for information presentation like advertising, news and business to public messages. Basic colors are red, blue, green, yellow, crimson, sky-blue and white. The display is operated either with PC via RS-232 interface, or with internal ROM , programmed on customer's conception.

Applications: Shops, supermarkets Administrative bulidings, Offices Airports, train stations Hotels, restaurants Production facilities

Specifications >>> .

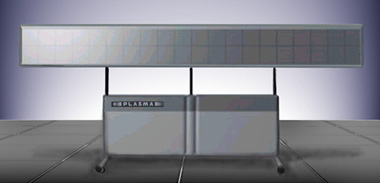

Information display for movie support The Information display (board) is intended for support of movies by synchronous translation of subsequences. Adjustment of the height allows to fit the board for any theater. Complete set includes remote control and software for synchronous movie support.

Specifications >>> .
